3240079 | Phoenix Contact

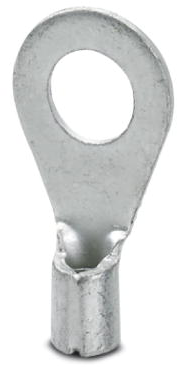

Uninsulated ring cable lug, 1.5-2.5 mm², AWG 18 to 14, 5.3 mm, M5, metal
Order No.: 60P7307
EAN: 4046356452960
MPN:
3240079
C-RC 2,5/M5 DIN
Unit Price (€ / pc.)
0.2225 € *
Available: 0 pcs.
Leadtime: On Request **
Ring cable lug C-RC 25/M12 DIN
Ring cable lug, uninsulated, 25 mm², M12
The technical characteristics of 3240103 from Phoenix Contact at a glance
- Item description: C-RC 25/M12 DIN
- Product Type Name: Connector
- metric connection thread dimension: M12
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 18 to 14 | |
| Colour | metal | |
| Thread size | M5 | |
| Isolated | No | |
| Cable cross-section | 1.5-2.5 mm² | |
| Hole diameter | 5.3 mm | |
| Material | copper | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
