3240075 | Phoenix Contact

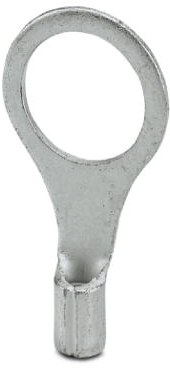

Uninsulated ring cable lug, 0.5-1.0 mm², AWG 20 to 18, 8.4 mm, M8, metal, 3240075
Unit Price (€ / pc.)
0.2725 € *
Available in 5 Days: 10,700 pcs. - if ordered today
Ring cable lug C-RCEI 1,5/M6
Ring cable lug, red, 0,5 - 1,5 mm², M6, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241205 from Phoenix Contact at a glance
- Item description: C-RCEI 1,5/M6
- Insulation available: Yes
- Product compliant (following DIN): No
- Product Type Name: Connector
- Flange shape: Ring shape
- max. area of the nominal cross section: 1.5 mm²
- min. Nominal cross section: 0.5 mm²
- metric connection thread dimension: M6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 18 | |
| Hole diameter | 8.4 mm | |
| Colour | metal | |
| Thread size | M8 | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
