70140695-100002 | PEPPERL+FUCHS
Vibration sensor, 18-30 VDC, 70140695-100002
Order No.: 28G6095
MPN:
70140695-100002
VIM32PP-E7DC8-0RE-IO-1V1401
Unit Price (€ / pc.)
573.8894 € *
Standard delivery time from the manufacturer is: 1 Week

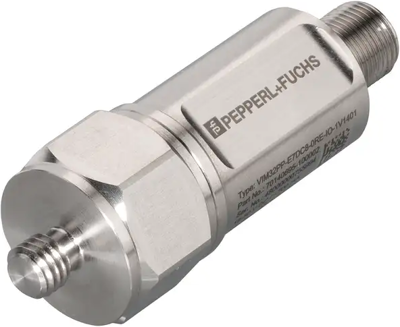

Vibration sensor, VIM32PP-E7DC8-0RE-IO-1V1401, PEPPERL+FUCHS
Vibration sensor with IO-Link and programmable switching output or analog current output.
Features
- Raw data for vibration acceleration a-Raw by means of BLOB transfer
- Frequency range up to 12 kHz with sampling rate up to 64 kHz
- Bearing status parameter according to DIN ISO 13373
- Vibration velocity in mm/s (rms) acc. to DIN ISO 10816/20816
- Additional temperature value output
- IO-Link Interface for process data, parameterization and diagnosis
- Rugged stainless steel housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | M12-connector | |
| Product type | vibration sensor | |
| Voltage | 18-30 VDC | |
| Length | 72.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
