001-1-008-3-A1STH-XT0 | MPE-GARRY

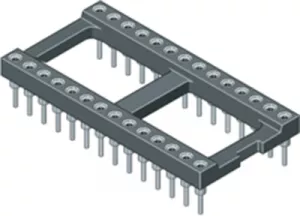

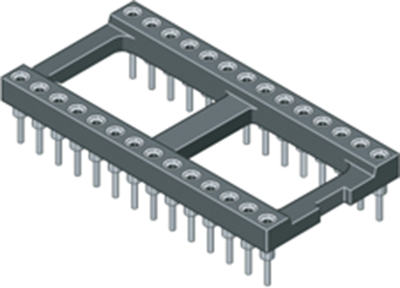

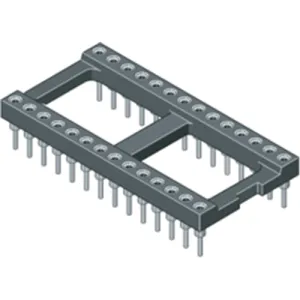

IC socket, 8 pole, pitch 2.54 mm (7.62 mm), copper alloy, tin plated for DIL-IC

Order No.: 14B102
EAN: 4099879022806
MPN:
001-1-008-3-A1STH-XT0
Series: 001 xxx A1STH
MPE-GARRY
default L
front L
Image may differ
Print
Key Specification:
Version IC socket
Suitable for DIL-IC
Pin number 8 pole
Grid 2.54 mm
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.7374 € *
Available: 510 pcs.
Leadtime: 2 Weeks **
Total Price:
886.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
510 pcs.
1.7374 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With tinned solder pins, type MP STG A.

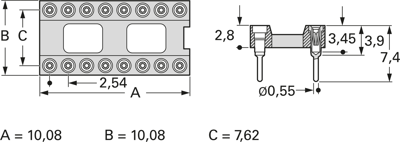

Technical attributes (number of poles, dimensions): 001-1-008-3-A1STH-XT0, 8-pole, A 10.08, B 10.08, C 7.62 mm
Technical specifications
Version IC socket
Width 10.08 mm
Suitable for DIL-IC
Height 3.9 mm
Contact material copper alloy, tin plated
Length 10.08 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 8 pole
Grid 2.54 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
MSL MSL 1
Original Packaging Bar with 51 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
