001-1-014-3-A1STH-XT0 | MPE-GARRY

IC socket, 14 pole, pitch 2.54 mm (7.62 mm), copper alloy, tin plated for DIL-IC

Order No.: 14B110
EAN: 4099879022837
MPN:
001-1-014-3-A1STH-XT0
Series: 001 xxx A1STH
MPE-GARRY
default L
front L

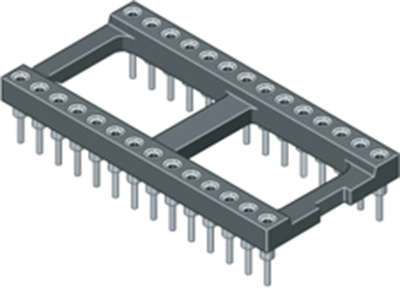

Image may differ
Unit Price (€ / pc.)
2.2134 € *
Available: 430 pcs.
Leadtime: On Request **
Total Price:
6.64 € *
Price list
Quantity
Price per unit*
3 pcs.
2.2134 €
15 pcs.
1.9873 €
75 pcs.
1.8088 €
400 pcs.
1.7136 €
800 pcs.
1.6303 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With tinned solder pins, type MP STG A.

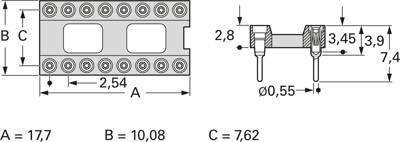

Technical attributes (number of poles, dimensions): 001-1-014-3-A1STH-XT0, 14-pole, A 17.70, B 10.08, C 7.62 mm

Technical specifications
Version IC socket
Width 10.1 mm
Suitable for DIL-IC
Height 3.2 mm
Contact material copper alloy, tin plated
Length 17.7 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 14 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 29 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
