001-2-024-6-A1STH-XT0 | MPE-GARRY

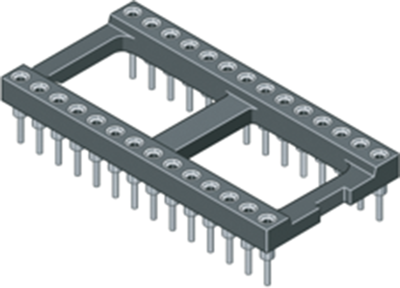

IC socket, 24 pole, pitch 2.54 mm (15.24 mm), copper alloy, tin plated for DIL-IC

Order No.: 14B142
EAN: 4099879022943
Series: 001 xxx A1STH
default L
front L
Image may differ
Unit Price (€ / pc.)
2.6299 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
510 pcs.
2.6299 €

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With tinned solder pins, type MP STG A.

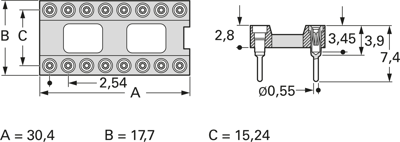

Technical attributes (number of poles, dimensions): 001-2-024-6-A1STH-XT0, 24-pole, A 30.40, B 17.70, C 15.24 mm

Technical specifications
Version IC socket
Width 17.7 mm
Suitable for DIL-IC
Height 2.8 mm
Contact material copper alloy, tin plated
Length 30.4 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 24 pole
Grid 2.54 mm
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 17 pieces
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
