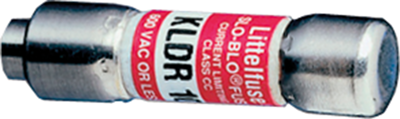

KLDR004.TXP | Littelfuse

Microfuse 10.3 x 38.1 mm, 4 A, T, 300 V (DC), 600 V (AC), 200 kA breaking capacity, KLDR004.TXP

Order No.: 42G8835
EAN: 4099889087680
MPN:
KLDR004.TXP
Series: KLDR
KLDR004.TXP Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
42.721 € *
Available in 4 Days: 40 pcs. - if ordered today
Total Price:
427.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
42.721 €

Micro fuse, KLDR004.TXP,LITTELFUSE

The KLDR004.TXP is a time-lag fuse that is designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle.

Features

  • Excellent short-circuit protection
  • Current limiting
  • Rejection feature
  • High rated voltage

Applications

  • Transformer protection
Technical specifications
diameter 10.31 mm
Breaking capacity 200 kA
Design 10.3 x 38.1 mm
Rated current 4 A
Rated voltage (DC) 300 V
Enclosure melamine tube
Version microfuse
Tripping characteristics T
Length 38.1 mm
Rated voltage (AC) 600 V
Logistics
Original Packaging Carton with 10 pieces
Country of origin MX
Customs tariff number 85361010
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
