0314001.HXP | Littelfuse
Microfuse 6.3 x 32 mm, 1 A, F, 125 V (DC), 250 V (AC), 100 A breaking capacity, 0314001.HXP
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 11 Weeks

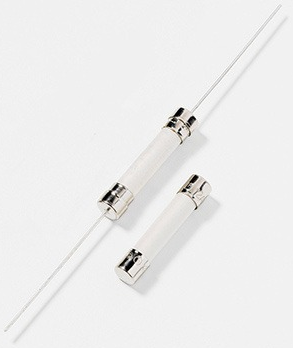

Fast-acting fuse, 0314001.HXP, Littelfuse
The 3AB Fast-Acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. It is also used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 100 A | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Rated current | 1 A | |
| Length | 31.75 mm | |
| diameter | 6.35 mm | |
| Enclosure | ceramic tube | |
| Rated voltage (DC) | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
