0219005.MXAP | Littelfuse
Microfuse 5 x 20 mm, 5 A, T, 250 V (AC), 150 A breaking capacity, 0219005.MXAP
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 15 Weeks
Fuse, 0219005.MXAP, Littelfuse

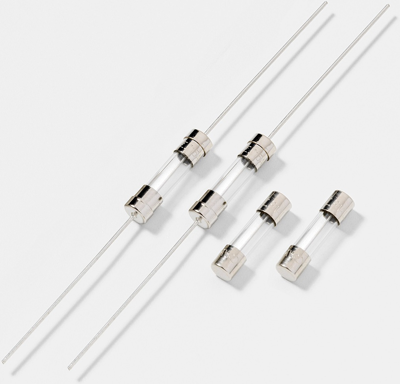

5×20 mm time-lag glass body cartridge fuse designed to IEC specification.
Features
- Designed to International IEC Standards for use globally
- Meets the IEC 60127-2
- Available in cartridge and axial lead form
- RoHS compliant and lead-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Rated voltage (AC) | 250 V | |
| Enclosure | glass tube | |
| Length | 20 mm | |
| Design | 5 x 20 mm | |
| Breaking capacity | 150 A | |
| diameter | 5.2 mm | |
| Version | microfuse | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
