02153.15MXP | Littelfuse
Microfuse 5 x 20 mm, 3.15 A, T, 250 V (AC), 1.5 kA breaking capacity, 02153.15MXP
Unit Price (€ / pc.)
0.1868 € *
Available in 4 Days: 1,780 pcs. - if ordered today

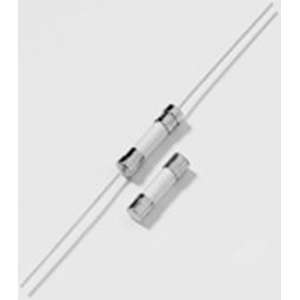

Micro fuse, 02153.15MXP, Littelfuse
The 02153.15MXP is a time-lag fuse, it is used for surge-withstand and has a ceramic body cartridge that is designed to IEC specifications.
Features
- High breaking capacity
- RoHS-compatible and lead-free
Applications
- Supplementary protection
- Internal circuits
- Utilization equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3.15 A | |
| Design | 5 x 20 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Tripping characteristics | T | |
| diameter | 5 mm | |
| Breaking capacity | 1.5 kA | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
