0213001.MXP | Littelfuse

Microfuse 5 x 20 mm, 1 A, T, 250 V (DC), 250 V (AC), 35 A breaking capacity, 0213001.MXP

Order No.: 55P2940
EAN: 4099889097009
MPN:
0213001.MXP
Series: 213
0213001.MXP Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.1987 € *
Available in 4 Days: 1,000 pcs. - if ordered today
Total Price:
198.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.1987 €

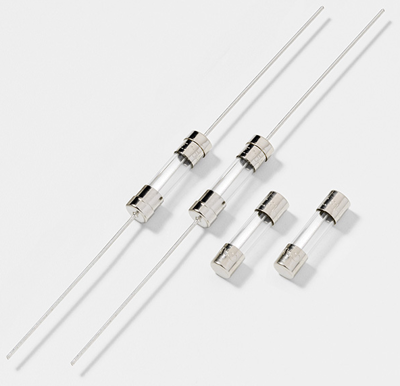

Micro fuse, 0213001.MXP, Littelfuse

The 0213001.MXP is a time-lag fuse, it is used for surge-withstand and has a Glass body that is designed to IEC specifications.

Features

  • Designed to International (IEC) Standard for use globally
  • RoHS-compatible and lead-free

Applications

  • Supplementary protection
  • Internal circuits
  • Utilization equipment
Technical specifications
Rated voltage (DC) 250 V
Design 5 x 20 mm
Enclosure glass tube
diameter 5.2 mm
Breaking capacity 35 A
Rated voltage (AC) 250 V
Length 21.5 mm
Rated current 1 A
Tripping characteristics T
Version microfuse
Logistics
Country of origin CN
Customs tariff number 85361010
Original Packaging Bulk with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
