0213.800MXP | Littelfuse
Microfuse 5 x 20 mm, 800 mA, T, 250 V (DC), 250 V (AC), 35 A breaking capacity, 0213.800MXP
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 15 Weeks

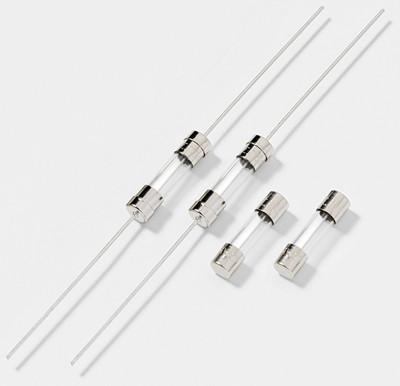

Micro fuse, 0213.800MXP, Littelfuse
The 0213.800MXP is a time-lag fuse, it is used for surge-withstand and has a Glass body that is designed to IEC specifications.
Features
- Designed to International (IEC) Standard for use globally
- RoHS-compatible and lead-free
Applications
- Supplementary protection
- Internal circuits
- Utilization equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Rated voltage (AC) | 250 V | |
| Enclosure | glass tube | |
| Rated voltage (DC) | 250 V | |
| Length | 21.5 mm | |
| Design | 5 x 20 mm | |
| Breaking capacity | 35 A | |
| diameter | 5.2 mm | |
| Version | microfuse | |
| Rated current | 800 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
