015406.3DR | Littelfuse

SMD fuse 9.73 x 5.03 mm, 6.3 A, FF, 125 V (DC), 125 V (AC), 50 A breaking capacity, 015406.3DR

Order No.: 55P2648
EAN: 4099889096781
MPN:
015406.3DR
Series: 154
015406.3DR Littelfuse Micro Fuses

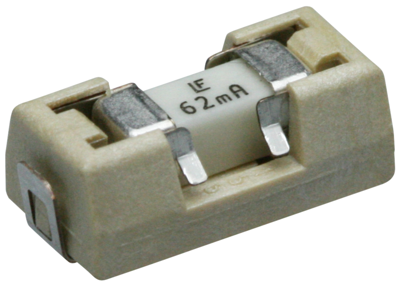

Image may differ
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
3,302.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
2.2015 €

SMD-Fuse, 015406.3DR, Littelfuse

The 015406.3DR is a fuse holder that offers a solution for efficient installation and easy replacement of miniature surface mount fuses.

Features

  • Easy fuse replacement
  • Wide range of current
  • 260°C reflow capable fuseholder
  • Very fast-acting

Applications

  • Holder for nano fuses
  • For fluctuating temperatures
Technical specifications
Design 9.73 x 5.03 mm
Version SMD fuse
Enclosure SMD
Rated current 6.3 A
Tripping characteristics FF
Rated voltage (DC) 125 V
Height 3.81 mm
Length 9.73 mm
Rated voltage (AC) 125 V
Breaking capacity 50 A
Width 5.03 mm
Logistics
Original Packaging Reel with 1,500 pieces
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
