0154.750DRTL | Littelfuse
SMD-Fuse 9.73 x 5.03 mm, 750 mA, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0154.750DRTL
Unit Price (€ / pc.)
2.7370 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

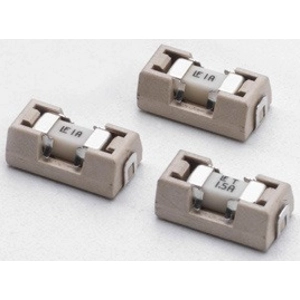

SMD-Fuse, 0154.750DRTL, Littelfuse
The RoHS compliant fuse and holder assembly offers a solution for efficient installation and easy replacement of miniature Nano2 surface mount fuses. Offered in a tape and reel package, this fuse and holder combination can be installed on a PC board as an efficient single step. Fuse replacement can be accomplished without exposing the PC board to the detrimental effects of solder heat.
Features
- Easy fuse replacement
- Miniature size
- RoHS compliant and Halogen free
- Low fuse temperature re-rating
- Wide operating temperature range
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | T | |
| Breaking capacity | 50 A | |
| Design | 9.73 x 5.03 mm | |
| Width | 5.03 mm | |
| Enclosure | SMD | |
| Height | 3.81 mm | |
| Length | 9.73 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 750 mA |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
