7027074 | LAPP

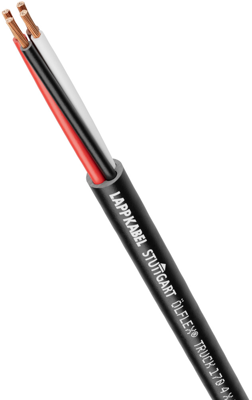

PVC automotive cable ÖLFLEX TRUCK 170 FLRYY 5 x 4x6.0 mm² + 1x1.5 mm², unshielded, black, 7027074
Order No.: 33P2645
EAN: 4044774687339
MPN:
7027074
ÖLFLEX TRUCK 170 FLRYY 4X6+1X1,5
Series: ÖLFLEX TRUCK 170 FLRYY
Unit Price (€ / mtr.)
14.2443 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
712.22 € *
Price list
Quantity
Price per unit*
50 mtr.
14.2443 €
100 mtr.
13.0900 €
500 mtr.
11.9476 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC power and control cable, 7027074, LAPP
The 7027074 is a PVC power and control cable designed for use in commercial vehicles under medium mechanical load conditions. Due to the ADR certificate this product is approved for electrical equipment in trailers and semi-trailers for the transport of dangerous goods.
Features
- Suitable for outdoor use
- Good chemical resistance
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | automotive cable | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Test voltage | 5 kV | |
| Cable cross-section | 4x6.0 mm² + 1x1.5 mm² | |
| Core colour sequence | gray/brown/red/black/blue | |
| Temperature range (unmoved) | -40 °C to 85 °C | |
| Protective conductor available | No | |
| Outer diameter | 13.7 mm | |
| Colour | black | |
| Rated voltage | 60 V | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
