61804225 | LAPP
Straight hose screw fitting, M50, 48 mm, PA, IP66/IP67/IP68/IP69, black, (L) 72.8 mm, 61804225
Order No.: 33P5921
EAN: 4044777576999
MPN:
61804225
FIPLOCK ONE M50X1,5 / 48 BK
Series: FIPLOCK ONE M
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
26.4537 € *
Available in 7 Days: 20 pcs. - if ordered today
Total Price:
26.45 € *
Price list
Quantity
Price per unit*
1 pcs.
26.4537 €
5 pcs.
24.9781 €
10 pcs.
23.5025 €
25 pcs.
22.0388 €
50 pcs.
20.5751 €
*incl. VAT plus shipping costs
Subject to prior sale

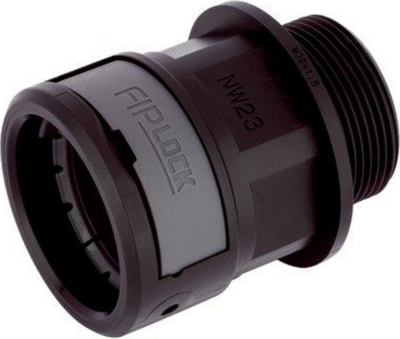

Hose fitting, 61804225, LAPP
The 61804225 is a hose fitting, with a metric connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV-resistance, this product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M50 | |
| Nominal width | 48 mm | |
| Material | PA | |
| Colour | black | |
| Length | 72.8 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 | |
| min. operating temperature | -45 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
