61804221 | LAPP
Straight hose fitting, M32, 29 mm, polyamide, IP66/IP67/IP68/IP69, black, (L) 55.4 mm
Order No.: 33P5917
EAN: 4044777576951
MPN:
61804221
FIPLOCK ONE M32X1,5 / 29 BK
Series: FIPLOCK ONE M
Unit Price (€ / pc.)
19.3256 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
19.33 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3256 €
5 pcs.
18.2427 €
10 pcs.
17.1717 €
25 pcs.
16.1007 €
50 pcs.
15.0297 €
*incl. VAT plus shipping costs
**Subject to prior sale

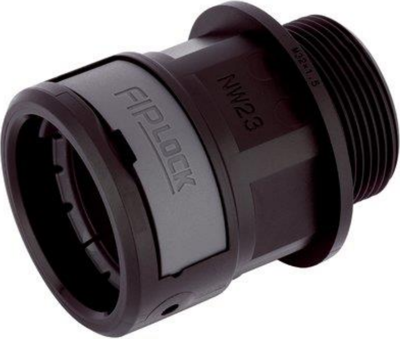

Hose fitting, 61804221, LAPP
The 61804221 is a hose fitting, with a metric connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV-resistance, this product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Colour | black | |
| Thread size | M32 | |
| Length | 55.4 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 29 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
