61804212 | LAPP
Straight hose fitting, M12, 10 mm, polyamide, IP66/IP67/IP68/IP69, black, (L) 40 mm
Order No.: 33P5908
EAN: 4044777576869
MPN:
61804212
FIPLOCK ONE M12X1,5 / 10 BK
Series: FIPLOCK ONE M
Unit Price (€ / pc.)
5.0932 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
5 pcs.
4.8076 €
10 pcs.
4.5220 €
25 pcs.
4.2364 €
50 pcs.
3.9627 €
*incl. VAT plus shipping costs
**Subject to prior sale

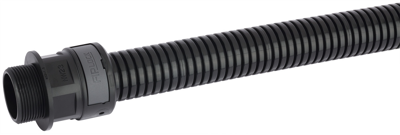

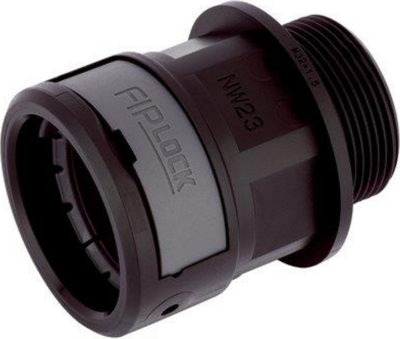

Hose fitting, 61804212, LAPP
The 61804212 is a hose fitting, with a metric connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV-resistance, this product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Colour | black | |
| Thread size | M12 | |
| Length | 40 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 10 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
