10282545 | LAPP

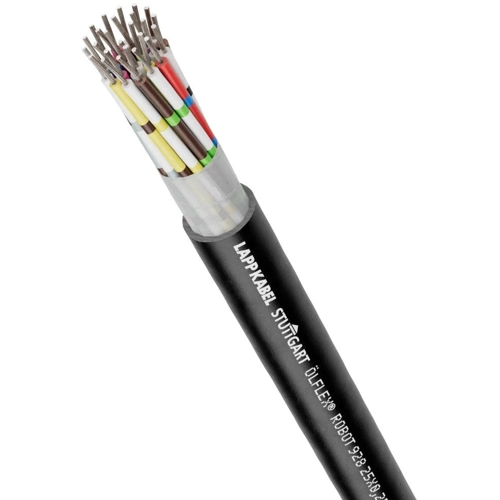

PVC data cable, 25-wire, 0.34 mm², AWG 22, black, 10282545
Order No.: 92F7234
EAN: 4064729959212
MPN:
10282545
ÖLFLEX ROBOT 928 25X0,34
Series: ÖLFLEX ROBOT 928
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
11.7453 € *
Standard delivery time from the manufacturer is: 4 Weeks
Control Cable, 10282545, LAPP
The 10282545 is a control cable designed for flexible use and fixed installation under moderate mechanical stress in moderate conditions. It is suitable for linear, automated movement (power chain), as well as torsional application in robots and automated handling machines. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation. Compulsory guidance is not permitted. It is also suitable for use in dry, damp or wet areas and outdoor use if the indicated temperature range is observed.
Features
- Torsion resistant
- UV-resistant
- Flame retardant
- Halogen-free
- Suitable for powerchain
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | robot cable | |

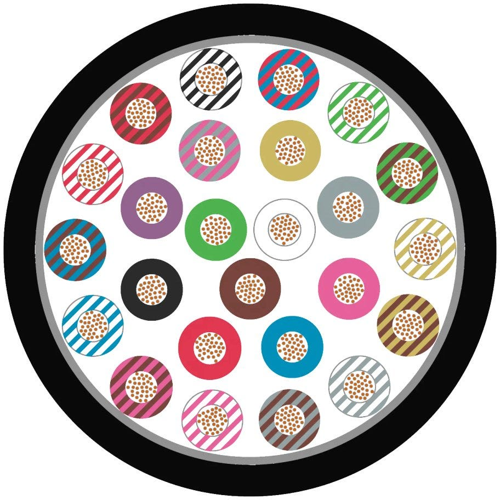

| Number of cores | 25 | |
| Cable cross-section | 0.34 mm² | |
| AWG cross-section | AWG 22 | |
| Outer diameter | 10.2 mm | |
| Colour | black | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PP | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
