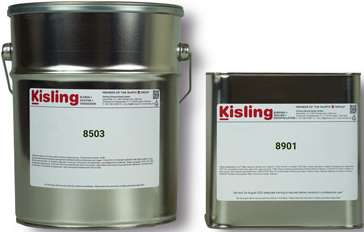

Casting resin/hardener bundle, 2 kg + 250 ml, can, liquid, natural (beige), 8503-30N + 8901

Order No.: 19L5951
EAN: 4099891984571
MPN:
8503-30N + 8901
8503-30N
Kisling Deutschland GmbH
8503-30N + 8901 Kisling Deutschland GmbH Sealants, Potting Compounds
Image may differ
Print
Key Specification:
Version 2 component polyurethane casting resin + PU hardener
Contents 2 kg + 250 ml
Container can
Consistency of the Material liquid
Colour natural (beige)

Ordering Information:

not to be sold to private customers
Show variants: 4
Download Datasheet Technical specifications
Unit Price (€ / pc.)
130.4240 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
130.42 € *
Price list
Quantity
Price per unit*
1 pcs.
130.4240 €
30 pcs.
117.3935 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Signal word
Variations

2-component polyurethane casting resin 8503 + PU hardener 8901

Solvent-free and electrically insulating, very high thermal conductivity, no metallic fillers, excellent adhesion properties, free of halogenated flame retardants. Ideal for cooling windings, electric motors, accumulators, and high-performance components. For creating effective heat sink design variations and easily combinable with Kisling's LED potting compounds.

Chemical basis: Polyurethane
Color: Natural (beige)
Density: 2.20 – 2.30 g/cm3
Mixing ratio: 100 : 8 (W:W)
Viscosity: 8500 – 12500 mPas
Pot life: min. 25 – 35
Shore hardness (DIN EN ISO 868): D50 – 60
Operating temperature range: -50 to +160 °C
Curing conditions: Cold curing
Thermal conductivity: 1.5 W/mK
Glass transition temperature: 10 °C
CTE < Tg: 72.5 ppm/K
CTE > Tg: 141.7 ppm/K
UL94: V0, 4.0 mm
Technical specifications
Version 2 component polyurethane casting resin + PU hardener
Contents 2 kg + 250 ml
Container can
Consistency of the Material liquid
Colour natural (beige)
Articles of same specification 0
Logistics
Country of origin CH
Customs tariff number 39095090
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
Signal word
Gefahrenpiktogramme
Information on dangerous goods

Signal word: Danger

Hazard statements:

  • H315 Causes skin irritation
  • H317 May cause an allergic skin reaction
  • H319 Causes serious eye irritation
  • H332 Harmful if inhaled
  • H334 May cause allergy or asthma symptoms or breathing difficulties if inhaled
  • H335 May cause respiratory irritation
  • H351 Suspected of causing cancer
  • H373 May cause damage to organs

Precautionary statements:

  • P260 Do not breathe dust/fume/gas/mist/vapours/spray.
  • P280 Wear protective gloves/protective clothing/eye protection/face protection/hearing protection/...
  • P284 [In case of inadequate ventilation] wear respiratory protection.
  • P304+P340 IF INHALED: Remove person to fresh air and keep comfortable for breathing.
  • P342+P311 If experiencing respiratory symptoms: Call a POISON CENTER/doctor/...

Supplemental Hazard
information:

  • EUH208 Contains (name of sensitising substance). May produce an allergic reaction.
  • EUH210 Safety data sheet available on request
  • EUH204 Contains isocyanates. May produce an allergic reaction.
