SMT-R033-1.0 | Isabellenhütte

Resistor, metal foil, SMD 2817, 33 mΩ, 7 W, ±1 %, SMT-R033-1.0

Order No.: 09E476
EAN: 4099879203137
MPN:
SMT-R033-1.0
Series: SMT

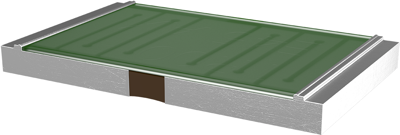

SMT-R033-1.0 Isabellenhütte SMD Resistors Image 1
SMT-R033-1.0 Isabellenhütte SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
2.8203 € *
Available: 11,622 pcs.
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
25 pcs.
2.4038 €
100 pcs.
2.2253 €
250 pcs.
2.1063 €
1000 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD precision resistor, size 2817, 2.0 to 5.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMT.

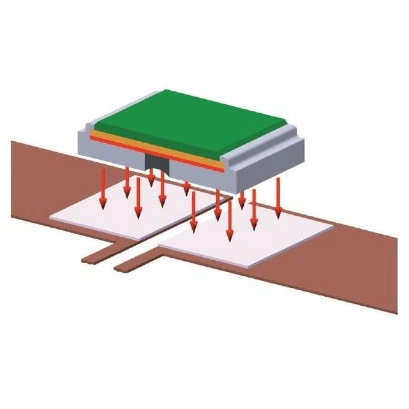

Suitable for use as two-wire resistor, four-wire connection on the solder pad. Ideal for clocked applications due to low inductance

Load rating 5.0 W.

Technical specifications
Filter Property Value
max. operating temperature 170 °C
Tolerance ±1 %
Height 0.8 mm
min. operating temperature -55 °C
Temperature coefficient ±100 ppm/K
Technology metal foil
Length 7.1 mm
Design SMD 2817
Power 7 W
ohmic resistance 33 mΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
