SMT-R0056-1.0 | Isabellenhütte

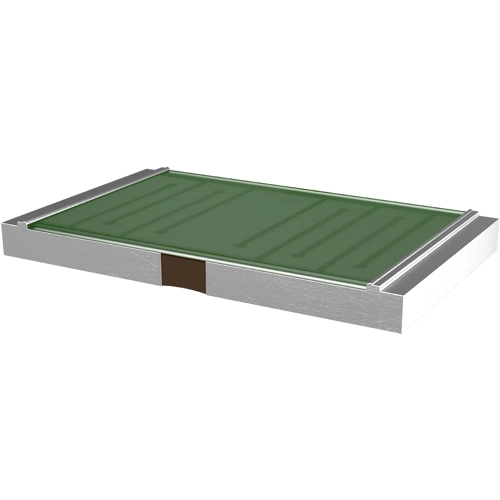

Resistor, metal foil, SMD 2817, 5.6 mΩ, 7 W, ±1 %, SMT-R0056-1.0
Unit Price (€ / pc.)
2.7251 € *
Available: 117 pcs.
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
25 pcs.
2.3205 €
100 pcs.
2.1420 €
250 pcs.
2.0349 €
1000 pcs.
1.8683 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD precision resistor, size 2817, 2.0 to 5.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMT.

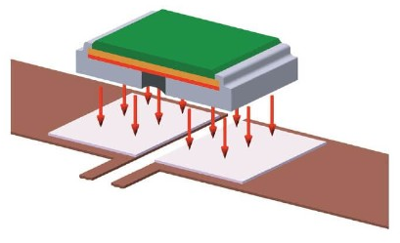

Suitable for use as two-wire resistor, four-wire connection on the solder pad. Ideal for clocked applications due to low inductance; Dimensions: L 7.1, W 4.2, H 0.8 mm. Temperature coefficient (TC): ±50 ppm/K (jumper approx. 3800 ppm/K). Internal thermal resistance: 13 K/W. Operating temperatures: –55 to +170 °C (jumper up to +140 °C). Stability (at rated load) tolerance: 0.5 % after 2000 h. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Load rating 5.0 W.
Type: 0R0056
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5.6 mΩ | |
| Tolerance | ±1 % | |
| Power | 7 W | |
| Design | SMD 2817 | |
| Temperature coefficient | ±50 ppm/K | |
| Technology | metal foil | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 170 °C | |
| Length | 7.1 mm | |
| Height | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
