BVT-Z-R0003-1 | Isabellenhütte

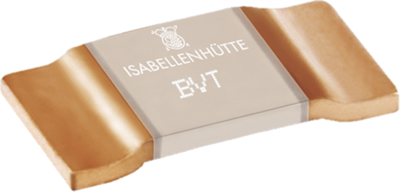

Resistor, metal plate, SMD 2512 (6330), 0.3 mΩ, 6 W, ±1 %, BVT-Z-R0003-1
SMD precision resistors, size 2512, 1.5 to 3.0 W, series ISA-WELD, type Isabellenhütte BVT.
Two-wire resistor with very low resistance and low inductance, conceived especially for currents up to 77 A (0.3 mohm)
1.0 % tolerance, type BVT.
ohmic resistance | 0.3 mΩ | |
Design | SMD 2512 (6330) | |
Width | 3 mm | |
Height | 0.35 mm | |
Length | 6.35 mm | |
Power | 6 W | |
max. operating temperature | 170 °C | |
min. operating temperature | -65 °C | |
Tolerance | ±1 % | |
Technology | metal plate | |
Temperature coefficient | ±175 ppm/K |
Country of origin | DE |
Customs tariff number | 85332100 |
Original Packaging | Reel with 5,000 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
