Isabellenhütte

BVT-I-R005-1.0 | Isabellenhütte

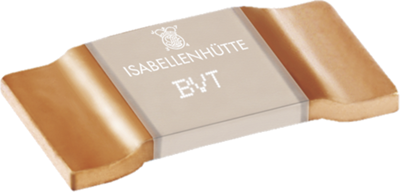

Resistor, metal plate, SMD 2512, 5 mΩ, 6 W, ±1 %, BVT-I-R005-1.0

default S
default L

Active

Total price
( 1.2614 € * / pcs.)
3.78 €
Available: 34,174 pcs.
Quantity
Price per unit*
3 pcs.
1.2614 €
25 pcs.
1.0948 €
150 pcs.
0.9758 €
500 pcs.
0.8806 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
Show 8 variants
Description

Product by Isabellenhütte at Bürklin Elektronik

SMD precision resistors, size 2512, 1.5 to 3.0 W, series ISA-WELD, type Isabellenhütte BVT.

Two-wire resistor with very low resistance and low inductance, conceived especially for currents up to 77 A (0.5 mohm)

1.0 % tolerance, type BVT.

Technical specifications
ohmic resistance 0.005 Ω
Design SMD 2512
Height 0.35 mm
Length 6.35 mm
Power 6 W
max. operating temperature 170 °C
min. operating temperature -65 °C
Assembly Reflow/IR-solder mounting
Technology metal plate
Temperature coefficient ±50 ppm/K
Tolerance ±1 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 8 variations
Item description
Price list
Total
Design
ohmic resistance
Length
Tolerance
Height
Assembly
min. operating temperature
max. operating temperature
Power
Technology
Resistor, metal plate, SMD 2512, 5 mΩ, 6 W, ±1 %, BVT-I-R005-1.0
Order No.:
 09E657
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-I-R005-1.0
3 pcs.
1.2614 €
25 pcs.
1.0948 €
150 pcs.
0.9758 €
500 pcs.
0.8806 €
1000 pcs.
0.7973 €
3.78 € *
Available: 34,174 pcs.
SMD 2512
0.005 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 500 µΩ, 6 W, ±1 %, BVT-M-R0005-1.0
Order No.:
 09E652
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-M-R0005-1.0
3 pcs.
1.3209 €
25 pcs.
1.1543 €
150 pcs.
1.0234 €
500 pcs.
0.9282 €
1000 pcs.
0.8449 €
3.96 € *
Available: 895 pcs.
SMD 2512
0.0005 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 3 mΩ, 6 W, ±1 %, BVT-I-R003-1
Order No.:
 09E655
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-I-R003-1
3 pcs.
1.3447 €
25 pcs.
1.1781 €
150 pcs.
1.0472 €
500 pcs.
0.9401 €
1000 pcs.
0.8568 €
4.03 € *
Available: 1,838 pcs.
SMD 2512
0.003 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 1 mΩ, 6 W, ±1 %, BVT-M-R001-1
Order No.:
 09E653
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-M-R001-1
3 pcs.
1.2614 €
25 pcs.
1.1067 €
150 pcs.
0.9758 €
500 pcs.
0.8806 €
1000 pcs.
0.7973 €
3.78 € *
Available: 1,016 pcs.
SMD 2512
0.001 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 0 Ω, 6 W, ±5 %, BVT-K-R000
Order No.:
 09E650
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-K-R000
5 pcs.
0.9639 €
25 pcs.
0.8449 €
150 pcs.
0.7497 €
500 pcs.
0.6664 €
1000 pcs.
0.6069 €
4.82 € *
Available: 150 pcs.
Next delivery: 100 pcs. on 2023-04-28
SMD 2512
0 Ω
6.35 mm
±5 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 4 mΩ, 6 W, ±1 %, BVT-I-R004-1
Order No.:
 09E656
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-I-R004-1
3 pcs.
1.4637 €
25 pcs.
1.2733 €
150 pcs.
1.1305 €
500 pcs.
1.0234 €
1000 pcs.
0.9282 €
4.39 € *
Available: 540 pcs.
SMD 2512
0.004 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 0.3 mΩ, 6 W, ±1 %, BVT-Z-R0003-1
Order No.:
 09E651
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-Z-R0003-1
1 pcs.
1.5946 €
100 pcs.
1.0710 €
500 pcs.
0.8925 €
1000 pcs.
0.7021 €
1.59 € *
Available: 4 pcs.
SMD 2512
0.0003 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512, 2 mΩ, 6 W, ±1 %, BVT-I-R002-1
Order No.:
 09E654
Manufacturer:
 Isabellenhütte
Manufacturer SKU
 BVT-I-R002-1
3 pcs.
1.5351 €
25 pcs.
1.3447 €
150 pcs.
1.1900 €
500 pcs.
1.0710 €
1000 pcs.
0.9758 €
4.61 € *
Available: 243 pcs.
Next delivery: 100 pcs. on 2023-04-21
SMD 2512
0.002 Ω
6.35 mm
±1 %
0.35 mm
Reflow/IR-solder mounting
-65 °C
170 °C
6 W
metal plate
