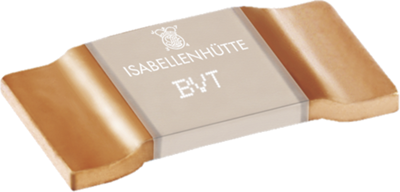

Resistor, metal plate, SMD 2512 (6330), 0 Ω, 6 W, ±5 %, BVT-K-R000

Order No.: 09E650
EAN: 4099879203465
MPN:
BVT-K-R000
Series: BVT
Isabellenhütte
default L
Image may differ
Print
Key Specification:
ohmic resistance 0 Ω
Tolerance ±5 %
Power 6 W
Design SMD 2512 (6330)
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.1543 € *
Available: 599 pcs.
Leadtime: 2 Weeks **
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
25 pcs.
0.9401 €
100 pcs.
0.7854 €
250 pcs.
0.6783 €
1000 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD precision resistors, size 2512, 1.5 to 3.0 W, series ISA-WELD, type Isabellenhütte BVT.

Two-wire resistor with very low resistance and low inductance, conceived especially for currents up to 77 A (0.5 mohm)
Technical specifications
ohmic resistance 0 Ω
Design SMD 2512 (6330)
Width 3 mm
Height 0.35 mm
Length 6.35 mm
Power 6 W
max. operating temperature 170 °C
min. operating temperature -65 °C
Tolerance ±5 %
Technology metal plate
Temperature coefficient ±50 ppm/K
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
ohmic resistance
Unit:
Tolerance
Design
Width
Unit:
Length
Unit:
Height
Unit:
min. operating temperature
max. operating temperature
Power
Unit:
Technology
1 item in 8 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
ohmic resistance
Tolerance
Design
Width
Length
Height
min. operating temperature
max. operating temperature
Power
Technology
Resistor, metal plate, SMD 2512 (6330), 500 µΩ, 6 W, ±1 %, BVT-M-R0005-1.0
Resistor, metal plate, SMD 2512 (6330), 500 µΩ, 6 W, ±1 %, BVT-M-R0005-1.0
Order No.:
 09E652
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-M-R0005-1.0
Available: 375 pcs. Leadtime: 3 Weeks **
Total Price: 3.01 € *
1 pcs.
3.0107 €
10 pcs.
1.8802 €
50 pcs.
1.6422 €
250 pcs.
1.4280 €
1000 pcs.
1.2495 €
500 µΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 4 mΩ, 6 W, ±1 %, BVT-I-R004-1
Resistor, metal plate, SMD 2512 (6330), 4 mΩ, 6 W, ±1 %, BVT-I-R004-1
Order No.:
 09E656
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-I-R004-1
Available: 525 pcs. Leadtime: On Request **
Total Price: 19.63 € *
10 pcs.
1.9635 €
50 pcs.
1.7136 €
250 pcs.
1.4875 €
1000 pcs.
1.2971 €
5000 pcs.
1.0710 €
4 mΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 2 mΩ, 6 W, ±1 %, BVT-I-R002-1
Resistor, metal plate, SMD 2512 (6330), 2 mΩ, 6 W, ±1 %, BVT-I-R002-1
Order No.:
 09E654
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-I-R002-1
Available: 1,404 pcs. Leadtime: 2 Weeks **
Total Price: 2.21 € *
1 pcs.
2.2134 €
25 pcs.
1.8802 €
100 pcs.
1.7374 €
250 pcs.
1.6422 €
1000 pcs.
1.4994 €
2 mΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 0 Ω, 6 W, ±5 %, BVT-K-R000
Resistor, metal plate, SMD 2512 (6330), 0 Ω, 6 W, ±5 %, BVT-K-R000
Order No.:
 09E650
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-K-R000
Available: 599 pcs. Leadtime: 2 Weeks **
Total Price: 1.15 € *
1 pcs.
1.1543 €
25 pcs.
0.9401 €
100 pcs.
0.7854 €
250 pcs.
0.6783 €
1000 pcs.
0.6069 €
0 Ω
±5 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 3 mΩ, 6 W, ±1 %, BVT-I-R003-1
Resistor, metal plate, SMD 2512 (6330), 3 mΩ, 6 W, ±1 %, BVT-I-R003-1
Order No.:
 09E655
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-I-R003-1
Available: 1,196 pcs. Leadtime: On Request **
Total Price: 1.65 € *
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2376 €
1000 pcs.
1.1305 €
3 mΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 1 mΩ, 6 W, ±1 %, BVT-M-R001-1
Resistor, metal plate, SMD 2512 (6330), 1 mΩ, 6 W, ±1 %, BVT-M-R001-1
Order No.:
 09E653
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-M-R001-1
Available: 565 pcs. Leadtime: On Request **
Total Price: 2.89 € *
1 pcs.
2.8917 €
10 pcs.
1.8088 €
50 pcs.
1.5827 €
250 pcs.
1.3685 €
1000 pcs.
1.2019 €
1 mΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
Resistor, metal plate, SMD 2512 (6330), 5 mΩ, 6 W, ±1 %, BVT-I-R005-1.0
Resistor, metal plate, SMD 2512 (6330), 5 mΩ, 6 W, ±1 %, BVT-I-R005-1.0
Order No.:
 09E657
Manufacturer:
 Isabellenhütte
Manufacturer SKU:
 BVT-I-R005-1.0
Available: 33,447 pcs. Leadtime: 13 Weeks **
Total Price: 3.14 € *
1 pcs.
3.1416 €
10 pcs.
1.9635 €
50 pcs.
1.7136 €
250 pcs.
1.4875 €
1000 pcs.
1.2971 €
5 mΩ
±1 %
SMD 2512 (6330)
3 mm
6.35 mm
0.35 mm
-65 °C
170 °C
6 W
metal plate
