BVT-I-R005-1.0 | Isabellenhütte

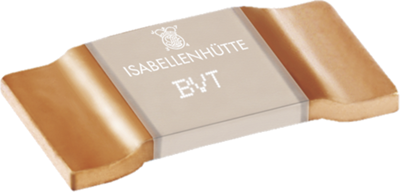

Resistor, metal plate, SMD 2512 (6330), 5 mΩ, 6 W, ±1 %, BVT-I-R005-1.0
Unit Price (€ / pc.)
3.1416 € *
Available: 33,447 pcs.
Leadtime: 13 Weeks **
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1416 €
10 pcs.
1.9635 €
50 pcs.
1.7136 €
250 pcs.
1.4875 €
1000 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistors, size 2512, 1.5 to 3.0 W, series ISA-WELD, type Isabellenhütte BVT.
Two-wire resistor with very low resistance and low inductance, conceived especially for currents up to 77 A (0.5 mohm)
1.0 % tolerance, type BVT.
Technical specifications
| ohmic resistance | 5 mΩ | |
| Design | SMD 2512 (6330) | |
| Width | 3 mm | |
| Height | 0.35 mm | |
| Length | 6.35 mm | |
| Power | 6 W | |
| max. operating temperature | 170 °C | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Technology | metal plate | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
