BAT64-06 | Infineon Technologies
Schottky diode

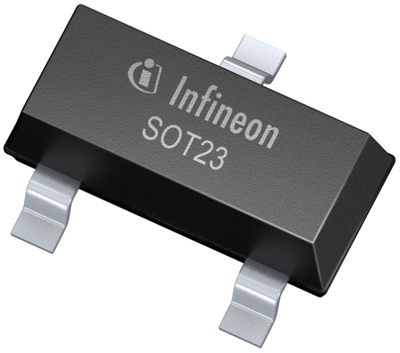

Images may differ
Unit Price (€ / pc.)
0.1012 € *
Available: 3,971 pcs.
Leadtime: On Request **
Total Price:
1.01 € *
Quantity
Price per unit*
10 pcs.
0.1012 €
100 pcs.
0.0785 €
500 pcs.
0.0655 €
1000 pcs.
0.0571 €
2500 pcs.
0.0536 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Schottky diode, BAT64-06, Infineon Technologies
Features
- Integrated diffused guard ring
- Low forward voltage
- Fast-recovery
- Pb-free and RoHs-compliant
Applications
- For meter-protection
- Clamping applications
- For low-losses
Technical specifications
| Number of diodes | 2 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 0.25 A | |
| Enclosure | SOT-23 | |
| Capacity | 6 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Junction temperature (max.) | 150 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Variations
Search results: 1 item in 4 variations
*incl. VAT plus shipping costs
Order No.:
10S7610
Manufacturer:
Infineon Technologies
Manufacturer SKU:
BAT6404E6327
Total Price: 1.79 € *
10 pcs.
0.1785 €
50 pcs.
0.1273 €
250 pcs.
0.1059 €
1000 pcs.
0.0916 €
2500 pcs.
0.0797 €
Available: 4,649 pcs.
Leadtime: 65 Weeks **
2
SMD
schottky rectifier diode
0.25 A
SMD
40 V
-55 °C
6 pF
150 °C
SOT-23
Order No.:
10S7583
Manufacturer:
Infineon Technologies
Manufacturer SKU:
BAT6402VH6327XTSA1
Total Price: 2.33 € *
10 pcs.
0.2332 €
50 pcs.
0.1666 €
250 pcs.
0.1380 €
1000 pcs.
0.1190 €
2500 pcs.
0.1047 €
Available: 1,043 pcs.
Next delivery: 3,000 pcs. on 2023-12-18
Leadtime: 42 Weeks **
1
SMD
schottky rectifier diode
0.25 A
SMD
40 V
-55 °C
6 pF
150 °C
SOT-23
Order No.:
10S7614
Manufacturer:
Infineon Technologies
Manufacturer SKU:
BAT64-06
Total Price: 1.01 € *
10 pcs.
0.1012 €
100 pcs.
0.0785 €
500 pcs.
0.0655 €
1000 pcs.
0.0571 €
2500 pcs.
0.0536 €
Available: 3,971 pcs.
Leadtime: On Request **
2
SMD
schottky rectifier diode
0.25 A
SMD
40 V
-55 °C
6 pF
150 °C
SOT-23
Order No.:
10S7612
Manufacturer:
Infineon Technologies
Manufacturer SKU:
BAT6405E6327
3000 pcs.
0.0988 €
Available: 0 pcs.
Leadtime: On Request **
2
SMD
schottky rectifier diode
0.25 A
SMD
40 V
-55 °C
6 pF
150 °C
SOT-23
