BAT62E6327 | Infineon Technologies
Schottky detector diode, 40 V, 20 mA, SOT143
Unit Price (€ / pc.)
0.4284 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
50 pcs.
0.3689 €
100 pcs.
0.3213 €
500 pcs.
0.2832 €
1000 pcs.
0.2547 €
*incl. VAT plus shipping costs
**Subject to prior sale

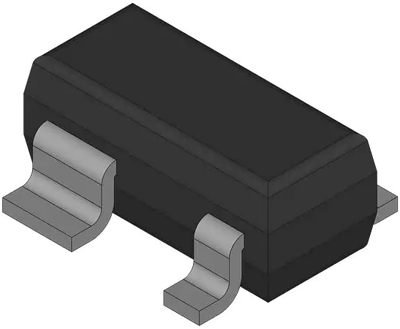

Schottky diode, BAT62E6327, Infineon Technologies
The BAT62E6327 is a RF Schottky diode wwith silicon low barrier N-type device.
Features
- Low leakage current
- Low signal distortion level
- High efficiency/low loss
- Low power consumption
Applications
- Power detection in wireless LAN and WiFi routers
- Power detection in mobile devices
- Power detection in wireless applications in ISM bands
- Mixer in 24 GHz passive radar system
Technical specifications
| Number of diodes | 2 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 20 mA | |
| Enclosure | SOT-143 | |
| Capacity | 0.6 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Junction temperature (max.) | 150 °C |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
