BAT15099E6327 | Infineon Technologies
Schottky rectifier diode, 4 V (RRM), 0.11 A, SOT-143, BAT15099E6327
As a private customer, you can buy this item as soon as we have it back in stock.

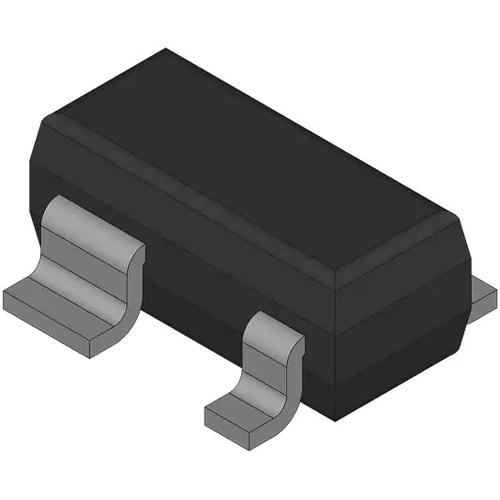

Schottky diode, BAT15099E6327, Infineon Technologies
The BAT15099E6327 is a RF Schottky diode is a silicon low barrier N-type device with an integrated guard ring on-chip for over-voltage protection.
Features
- Low inductance
- Low capacitance
- Pb-free, RoHS compliant and Halogen free
Applications
- Wearables
- Smart metering
- Telematic systems
- Set top boxes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | SOT-143 | |
| Voltage V RRM (peak reverse voltage) | 4 V | |
| Forward Current | 0.11 A | |
| Number of diodes | 2 | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 0.35 pF | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
