161-44300 | HellermannTyton

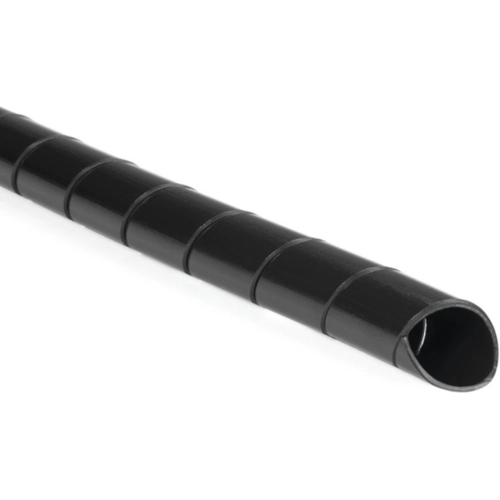

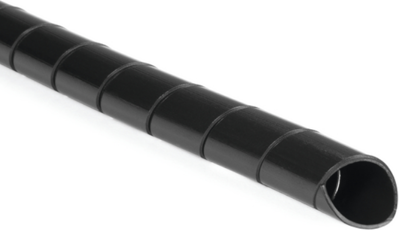

Spiral hose, bundle-Ø 20 to 150 mm, PA, black, 30 m, 161-44300
Unit Price (€ / mtr.)
10.6386 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
10.64 € *
Price list
Quantity
Price per unit*
1 mtr.
10.6386 €
10 mtr.
9.7818 €
30 mtr.
9.1987 €
60 mtr.
8.6275 €
120 mtr.
8.0563 €
*incl. VAT plus shipping costs
Subject to prior sale

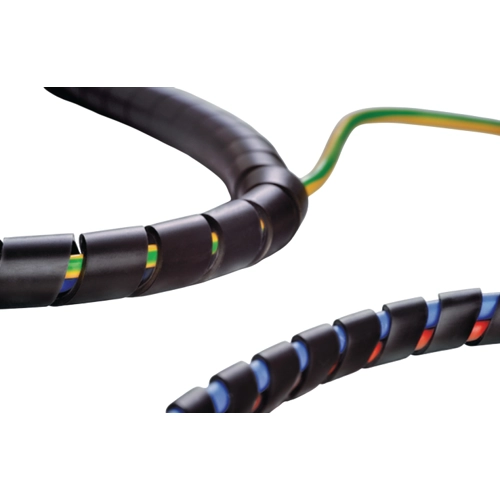

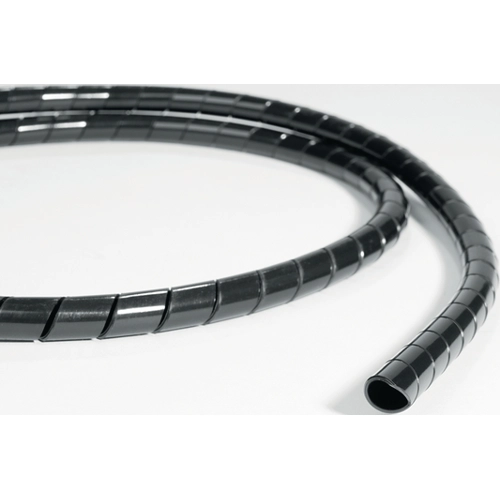

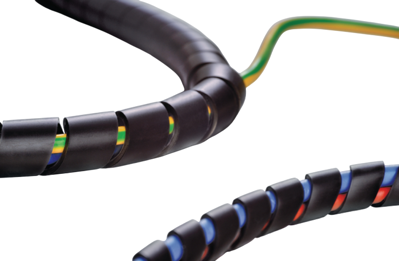

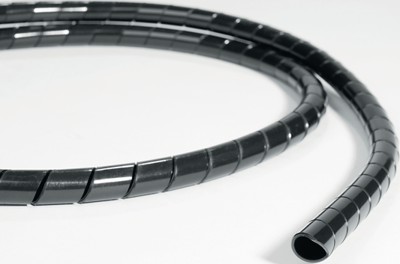

Spiral wrap, 161-44300, HellermannTyton
Due to its excellent flame protection properties, SBPAV0 spiral binding is particularly suitable for the rail and aviation industries as well as public buildings.
Features
- Organises and protects cables and hoses
- Self-extinguishing according to UL94 V0
- Very good protection against abrasion
- Suitable for retro-fitting
- Cables branch out at any point
- Wide range of diameters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 20 mm | |
| max. Bundle diameter | 150 mm | |
| Material | PA | |
| Colour | black | |
| Wall thickness | 1.2 mm | |
| Length | 30 m | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 95 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Original Packaging | Reel with 30 meters |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
