201-10020 | HellermannTyton
Mounting base, (L x W x H) 35 x 12.7 x 18 mm, mounting Ø 4.8 mm, PA, black, for round holes, 201-10020
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.6545 €
50 pcs.
0.6069 €
100 pcs.
0.5593 €
500 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale

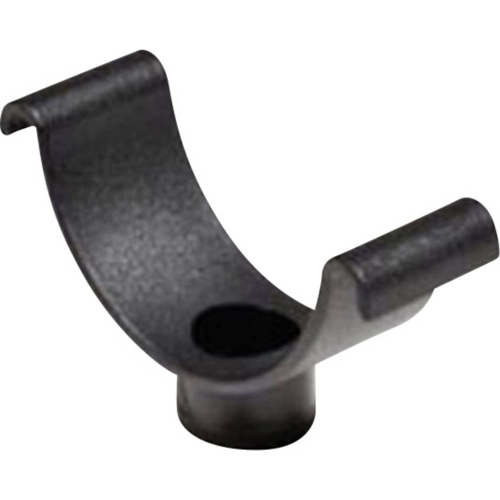

Mounting Base C2-PA6HIR-BK, HellermannTyton 201-10020
Mounting system for round holes offering a simple and versatile method for cable bundling and fastening. This mounting system consists of two parts: a mounting base and an elastic tensioning element. Note: Mounting base C.. and elastic tensioning element R.. must be ordered separately!
Features
- 2-piece fixing system consisting of a clamping base and a reusable retaining ring
- Allows cables to be added or removed after installation without tools

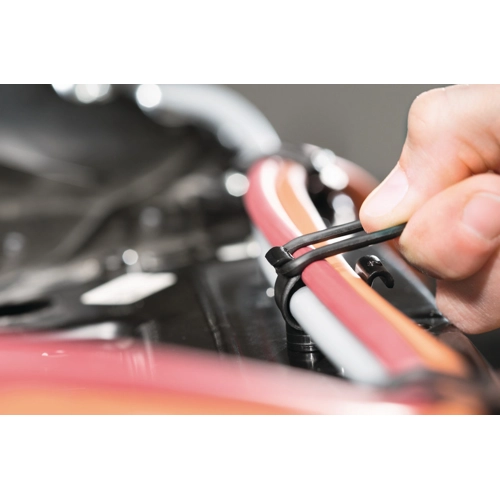

- Elastic loop enables quick and secure cable fastening by simply stretching over the clamp
- Suitable for dynamic environments where rework or maintenance is required
- Reopenable and reusable design supports sustainable cable management solutions
- Space-saving and simple method for routing and bundling cables on control panels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting base | |
| Suitable for | round holes | |
| Length | 35 mm | |
| Width | 12.7 mm | |
| Height | 18 mm | |
| Mounting hole size | 4.8 mm | |
| Colour | black | |
| Material | PA | |
| min. operating temperature | -35 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Country of origin | FR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
