09380873101 | Harting

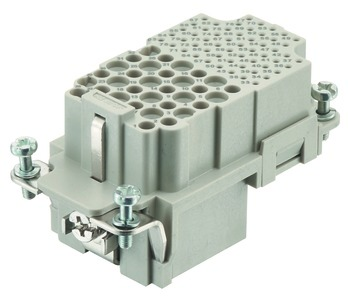

Socket contact insert, 10B, 87 pole, unequipped, crimp connection, with PE contact, 09380873101
Order No.: 44F3588
EAN: 4099889776010
MPN:
09380873101
09 38 087 3101
Unit Price (€ / pc.)
30.8567 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Contact insert, 09 38 087 3101, Harting
Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 10 B, Contacts: 32, + 55 additional signal contacts, Conductor cross-section: 0.14-2.5 mm², 0.09-0.52 mm² Signal
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 10B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 250 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Version | socket insert | |
| Additional parts | unequipped | |
| Shell size | 10B | |
| Contact connection | crimp connection | |
| PE contact | Yes | |
| Pin number | 87 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
