09380182701 | Harting

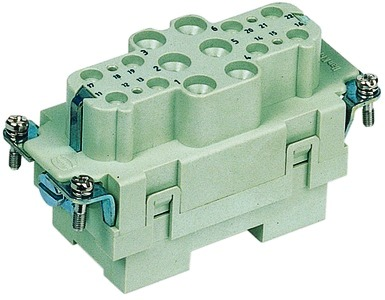

Socket contact insert, 16B, 18 pole, equipped, axial screw connection, with PE contact, 09380182701
Unit Price (€ / pc.)
101.4237 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
101.42 € *
Price list
Quantity
Price per unit*
1 pcs.
101.4237 €
2 pcs.
98.6034 €
5 pcs.
95.9378 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 38 018 2701, Harting
Insert, Axial screw termination / screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 16 B, Contacts: 6, + 12 additional signal contacts, Conductor cross-section: 2.5-8 mm², 0.2-2.5 mm² Signal, Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 16B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 40 A
- Rated voltage: 690 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket contact insert | |
| Shell size | 16B | |
| Additional parts | equipped | |
| Contact connection | axial screw connection | |
| Pin number | 18 pole | |
| PE contact | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
