09380062611 | Harting

Pin contact insert, 16B, 4 pole, equipped, screw connection, with PE contact, 09380062611

Order No.: 42F1971
EAN: 4099889769722
MPN:
09380062611
09 38 006 2611
Series: Han Com

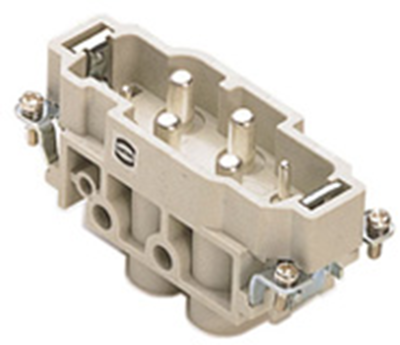

09380062611 Harting Contact Inserts Image 1
09380062611 Harting Contact Inserts Image 2
Image may differ
Unit Price (€ / pc.)
55.7872 € *
Available: 9 pcs.
Total Price:
55.79 € *
Price list
Quantity
Price per unit*
1 pcs.
55.7872 €
5 pcs.
51.8721 €
10 pcs.
47.7309 €
25 pcs.
43.4350 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09380062611, Harting

Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌80 A, Size: 16 B, Contacts: 4, Conductor cross-section: 1.5 - 16 mm², Copper alloy, Silver plated

Technical specifications
Filter Property Value
Pin number 4 pole
Version pin insert
Additional parts equipped
Shell size 16B
Contact connection screw connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin RO
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
