09380052721 | Harting

Socket contact insert, 24B, 3 pole, equipped, axial screw connection, 09380052721

Order No.: 44F3561
EAN: 4099889775822
MPN:
09380052721
09 38 005 2721
Series: Han Com
09380052721 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
133.0182 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
133.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
133.0182 €

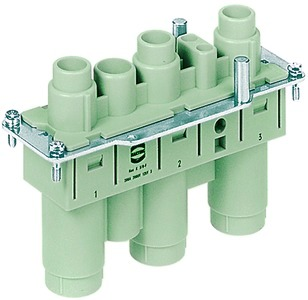

Contact insert, 09 38 005 2721, Harting

Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 200 A, Size: 24 B, Contacts: 3, Conductor cross-section: 35-70 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 200 A
  • PE contact: No
  • Colour: gray
Technical specifications
Filter Property Value
Version socket insert
Pin number 3 pole
Additional parts equipped
Contact connection axial screw connection
PE contact No
Shell size 24B
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
