10099147 | Fischer Elektronik
Extruded heatsink, (L x W x H) 75 x 50.8 x 8 mm, 7.7 to 2.17 K/W, anodized, 10099147
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8322 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8322 €
10 pcs.
2.6537 €
50 pcs.
2.4871 €
100 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale
Extruded heatsink, 10099147, Fischer Elektronik

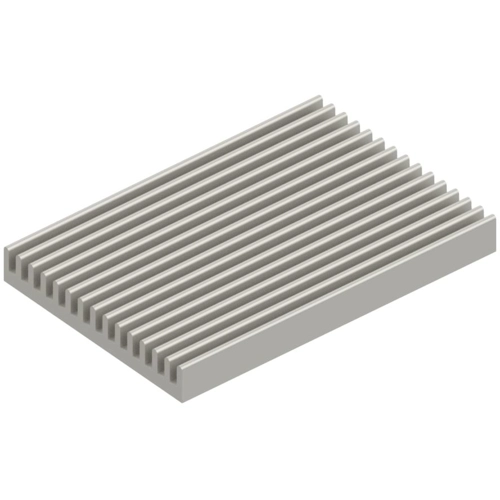

Extruded Heatsink SK 427 in 75 mm x 50.8 mm x 8 mm. Surface natural colour anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 2.17 K/W | |
| Max. heat resistance | 7.7 K/W | |
| Length | 75 mm | |
| Width | 50.8 mm | |
| Height | 8 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | anodized |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
