10020398 | Fischer Elektronik

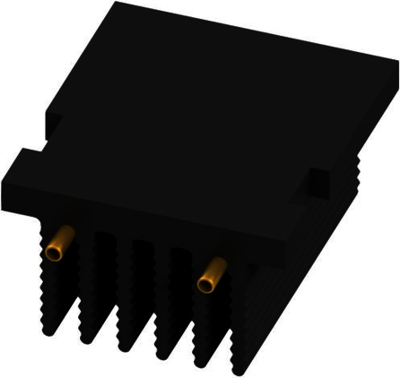

Extruded heatsink, (L x W x H) 37.5 x 34 x 20 mm, 7.9 K/W, black anodized, 10020398
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.6890 € *
Available: 3 pcs.
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6890 €
10 pcs.
3.4272 €
25 pcs.
3.1892 €
50 pcs.
2.9036 €
*incl. VAT plus shipping costs
Subject to prior sale

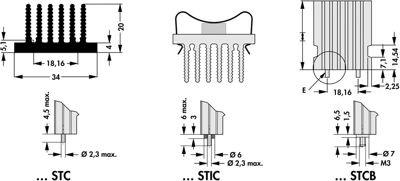

Profile heatsink, type Fischer SK 460.
For SIP-Multiwatt, TO-218, TO-220, TO-247, TO-248. For vertical mounting. Made of black anodized aluminum. Supplied without mounting clip.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. heat resistance | 7.9 K/W | |
| Length | 37.5 mm | |
| Width | 34 mm | |
| Height | 20 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | SIP-Multiwatt, TO-218, TO-220, TO-247, TO-248 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
