725100240000 | Finder
Monitoring relays, DIN rail, 1 Form C (NO/NC), 15 A, 400 V (AC), 725100240000
Order No.: 34G3122
EAN: 8012823465586
MPN:
725100240000
72.51.0.024.0000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
66.0926 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
66.09 € *
Price list
Quantity
Price per unit*
1 pcs.
66.0926 €
2 pcs.
63.4508 €
3 pcs.
61.0113 €
*incl. VAT plus shipping costs
Subject to prior sale

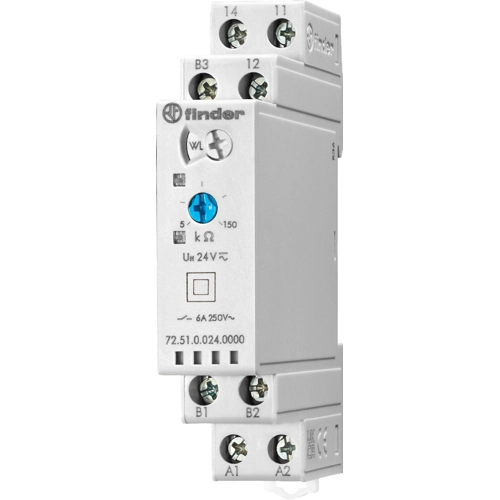

Monitoring relay, 725100240000, Finder
Level control relay for conductive liquids Type 72.51 with Adjustable sensitivity (5-150) kΩ and 6 functions. Delay time (0.5 s or 7 s) selectable.
Features
- Filling and emptying functions
- Control about a single level, between Min./Max. limits or Windows mode
- LED indicator
- Reinforced insulation (6 kV – 1.2/50 μs)
- 35 mm rail (EN 60715) mount
Applicatiions
- Industrial washing machines
- Swimming pools
- Control and management of water
- Bottling plant
- Milk processing plant
- Control panels for pumps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN rail | |
| Contact type | 1 Form C (NO/NC) | |
| switching current | 15 A | |
| Switching Voltage (AC) | 400 V | |
| Breaking capacity | 1500 VA | |
| Connection | cage clamp | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 90261029 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
