720182405002 | Finder
Monitoring relays, DIN rail, 1 Form C (NO/NC), 16 A, 400 V (AC), 720182405002
Order No.: 34G3121
EAN: 8012823364186
MPN:
720182405002
72.01.8.240.5002
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
65.4024 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
65.40 € *
Price list
Quantity
Price per unit*
1 pcs.
65.4024 €
2 pcs.
62.7844 €
3 pcs.
60.3687 €
*incl. VAT plus shipping costs
Subject to prior sale

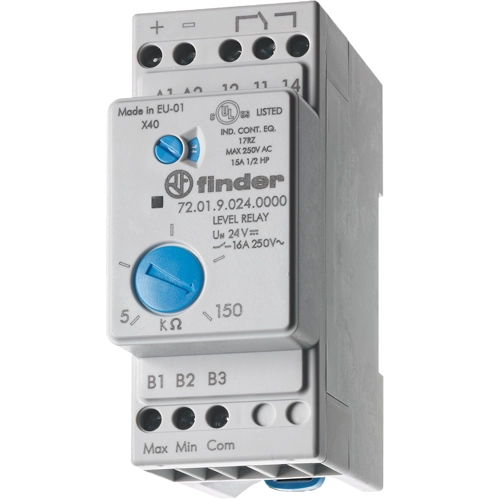

Monitoring relay, 720182405002, Finder
Type 72.01 level control relay for conductive liquids with adjustable sensitivity (5 - 150) kΩ, selectable intervention delay (0.5 s or 7 s). Filling or emptying function switch selectable. The adjustable sensitivity (5- 450) kΩ version can also be equipped with a contact for low loads down to 5 V - 1 mA.
Features
- Filling and emptying functions
- Double insulation
- Assembly on 35 mm rail (EN 60715)
- Control of a single level or two levels Min / Max
Applicatiions
- Industrial washing machines
- Swimming pools
- Control and management of water
- Bottling plant
- Milk processing plant
- Control panels for pumps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN rail | |
| Contact type | 1 Form C (NO/NC) | |
| switching current | 16 A | |
| Switching Voltage (AC) | 400 V | |
| Breaking capacity | 4000 VA | |
| Connection | cage clamp | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 90261029 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
