78W112302402 | Finder
Switching power supply, 1-phase, 24-28 VDC, 5 A, 120 W, 78W112302402
Order No.: 34G3127
EAN: 8012823465968
MPN:
78W112302402
78.W1.1.230.2402
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
34.3315 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
34.33 € *
Price list
Quantity
Price per unit*
1 pcs.
34.3315 €
3 pcs.
32.8321 €
5 pcs.
31.0352 €
7 pcs.
29.4287 €
*incl. VAT plus shipping costs
Subject to prior sale

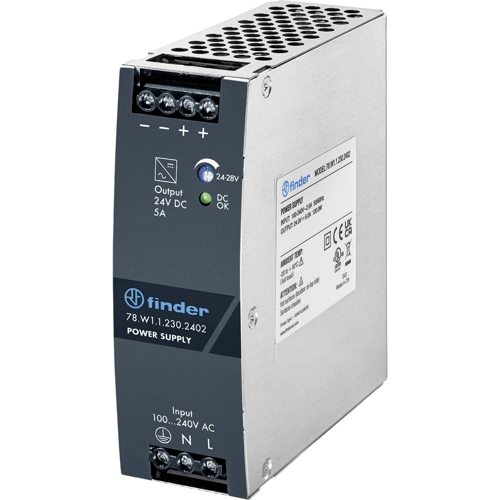

Switch mode power supply, 78W112302402, Finder
Industrial Single phase Switch Mode Type 78.W1.1.230.2402, 24 V DC, 120 W output. Output adjustable between 24-28 V. Compact size, low standby consumption.
Features
- High efficiency (up to 92%)
- Low stand-by power consumption
- DC output voltage adjustable
- Short circuit protection with hiccup auto-recovery
- Thermal protection with auto shoutdown
- High peak current up to 30%
- Boost current up to 30% for 3 s
- Parallel working for increased load current (with external diode) or redundancy
Applicatiions
- Building automation
- Elevators and lifts
- Automation for blinds, grilles and shutters
- Hoists and cranes
- Panels for electrical distribution
- Control panels for pumps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Number of outputs | 1 | |
| Output current | 5 A | |
| Output voltage DC | 24-28 VDC | |
| Input voltage AC | 90-264 VAC, 127-370 VDC | |
| Power | 120 W | |
| efficiency | 88 % | |
| Width | 40 mm | |
| Height | 126.4 mm | |
| Depth | 119.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044060 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
