PISN-331M-04 | Fastron

Power choke, SMD, 330 µH, 800 mA, PISN-331M-04

Order No.: 74D4768
EAN: 4099889012446
MPN:
PISN-331M-04
Series: PISN
Fastron

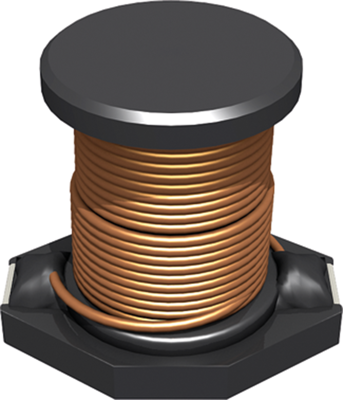

PISN-331M-04 Fastron Fixed Inductors Image 1
PISN-331M-04 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.3090 € *
Available: 500 pcs.
Leadtime: 9 Weeks **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
3 pcs.
1.3090 €
15 pcs.
1.1662 €
75 pcs.
1.0591 €
400 pcs.
0.9639 €
800 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Power inductor, PISN-331M-04, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Version power choke
Design SMD
Width 9.55 mm
DC current 800 mA
DC resistance 0.65 Ω
Height 11.5 mm
Inductance 330 µH
Length 13 mm
Measuring frequency 100 kHz
Saturation current 1.35 A
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 250 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
