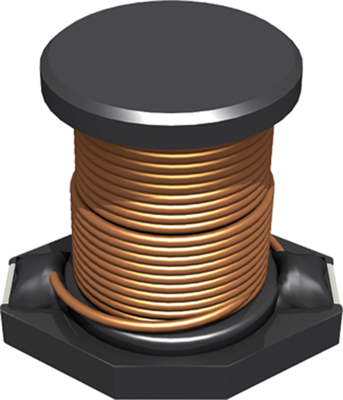

Power choke, SMD, 10 µH, 4.9 A, PISN-100M-04

default S
front S
default L
front L
Total price
(1.30 € * / pcs.)
3.89 €
Available: 220 pcs.
Quantity
Price per unit*
3 pcs.
1.30 €
15 pcs.
1.15 €
75 pcs.
1.05 €
400 pcs.
0.95 €
800 pcs.
0.88 €
*incl. VAT plus shipping costs
Show 9 variants
Description

Product by Fastron at Bürklin Elektronik

SMD Power inductor, PISN-100M-04, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters

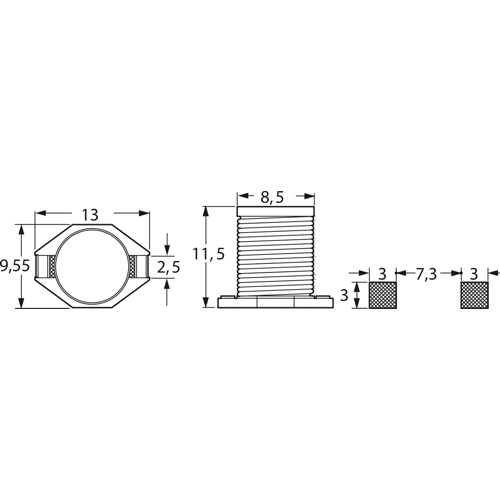

Technical specifications
Version power choke
Design SMD
Width 9.55 mm
DC current 4.9 A
DC resistance 0.024 Ω
Height 11.5 mm
Inductance 0.01 mH
Length 13 mm
Measuring frequency 0.1 MHz
Saturation current 8.3 A
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1 piece
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 9 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD, 33 µH, 3.1 A, PISN-330M-04
Order No.:
 74D4756
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-330M-04
3 pcs.
1.30 €
15 pcs.
1.15 €
75 pcs.
1.05 €
400 pcs.
0.95 €
800 pcs.
0.88 €
3.89 € *
Available: 205 pcs.
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.033 mH
3.1 A
0.065 Ω
Power choke, SMD, 22 µH, 3.5 A, PISN-220M-04
Order No.:
 74D4754
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-220M-04
3 pcs.
1.30 €
15 pcs.
1.15 €
75 pcs.
1.05 €
400 pcs.
0.95 €
800 pcs.
0.88 €
3.89 € *
Available: 229 pcs.
Next delivery: 150 pcs. on 2023-01-28
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.022 mH
3.5 A
0.05 Ω
Power choke, SMD, 10 µH, 4.9 A, PISN-100M-04
Order No.:
 74D4750
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-100M-04
3 pcs.
1.30 €
15 pcs.
1.15 €
75 pcs.
1.05 €
400 pcs.
0.95 €
800 pcs.
0.88 €
3.89 € *
Available: 220 pcs.
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.01 mH
4.9 A
0.024 Ω
Power choke, SMD, 220 µH, 1.1 A, PISN-221M-04
Order No.:
 74D4766
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-221M-04
3 pcs.
1.31 €
15 pcs.
1.17 €
75 pcs.
1.06 €
400 pcs.
0.96 €
800 pcs.
0.88 €
3.93 € *
Available: 120 pcs.
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.22 mH
1.1 A
0.39 Ω
Power choke, SMD, 100 µH, 1.5 A, PISN-101M-04
Order No.:
 74D4762
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-101M-04
100 pcs.
1.01 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.1 mH
1.5 A
0.21 Ω
Power choke, SMD, 47 µH, 2.7 A, PISN-470M-04
Order No.:
 74D4758
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-470M-04
250 pcs.
1.12 €
500 pcs.
1.02 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.047 mH
2.7 A
0.095 Ω
Power choke, SMD, 68 µH, 1.9 A, PISN-680M-04
Order No.:
 74D4760
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-680M-04
250 pcs.
0.96 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.068 mH
1.9 A
0.14 Ω
Power choke, SMD, 330 µH, 800 mA, PISN-331M-04
Order No.:
 74D4768
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-331M-04
3 pcs.
1.31 €
15 pcs.
1.17 €
75 pcs.
1.06 €
400 pcs.
0.96 €
800 pcs.
0.88 €
3.93 € *
Available: 250 pcs.
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
0.33 mH
0.8 A
0.65 Ω
Power choke, SMD, 1 mH, 200 mA, PISN-102M-04
Order No.:
 74D4774
Manufacturer:
 Fastron
Manufacturer SKU
 PISN-102M-04
3 pcs.
1.33 €
15 pcs.
1.20 €
75 pcs.
1.09 €
400 pcs.
1.01 €
800 pcs.
0.96 €
4.00 € *
Available: 500 pcs.
SMD
power choke
9.55 mm
13 mm
±20 %
11.5 mm
1 mH
0.2 A
2 Ω
