PISN-220M-04 | Fastron

Power choke, SMD, 22 µH, 3.5 A, PISN-220M-04

Order No.: 74D4754
EAN: 4099889012385
MPN:
PISN-220M-04
Series: PISN

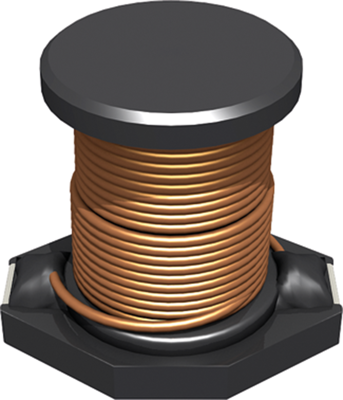

PISN-220M-04 Fastron Fixed Inductors Image 1
PISN-220M-04 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.5589 € *
Available: 210 pcs.
Available in 4 Days: 7,692 pcs. - if ordered today
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5589 €
25 pcs.
1.3804 €
150 pcs.
1.2495 €
500 pcs.
1.1305 €
1000 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale

Power inductor, PISN-220M-04, FASTRON

The PISN-220M-04 is a SMT power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.

Features

  • High rated current
  • High reliability

Applications

  • Power supplies
  • Coupling and Decoupling
  • LCD TV
  • Norebooks
  • DC/DC converters
  • Network switching systems
Technical specifications
Filter Property Value
Design SMD
Saturation current 5.6 A
Length 13 mm
Measuring frequency 100 kHz
DC current 3.5 A
Inductance 22 µH
Tolerance ±20 %
Width 9.55 mm
DC resistance 0.05 Ω
Version power choke
Height 11.5 mm
Logistics
Property Value
Original Packaging Reel with 1 piece
Customs tariff number 85045000
Country of origin MY
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
