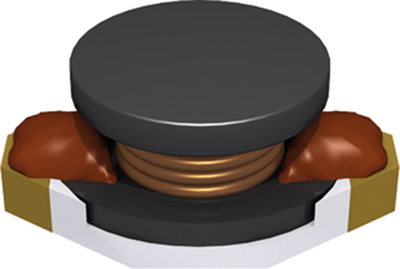

Power choke, SMD, 68 µH, 400 mA, PISG-680M-01

default S
front S
default L
front L
Total price
(0.76 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
750 pcs.
0.76 €
*incl. VAT plus shipping costs
Description

Product by Fastron at Bürklin Elektronik

Power inductor, PISG-680M-01, FASTRON

The PISG-680M-01 is a SMT power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.

Features

  • High rated current
  • High reliability

Applications

  • Power supplies
  • Coupling and Decoupling
  • LCD TV
  • Norebooks
  • DC/DC converters
  • Network switching systems
Technical specifications
Version power choke
Design SMD

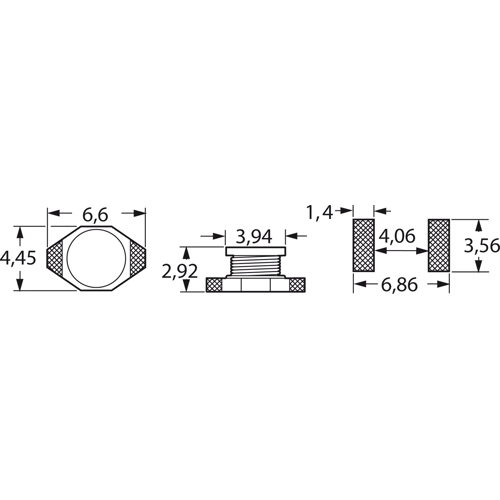

Width 4.45 mm
DC current 0.4 A
DC resistance 0.86 Ω
Height 2.92 mm
Inductance 0.068 mH
Length 6.6 mm
Measuring frequency 0.1 MHz
Saturation current 0.4 A
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 750 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 14 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD, 100 µH, 300 mA, PISG-101M-01
Order No.:
 74D4644
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-101M-01
5 pcs.
1.07 €
25 pcs.
0.95 €
125 pcs.
0.86 €
500 pcs.
0.79 €
1000 pcs.
0.73 €
5.35 € *
Available: 598 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.1 mH
0.3 A
1 Ω
Power choke, SMD, 4.7 µH, 1.5 A, PISG-4R7M-01
Order No.:
 74D4628
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-4R7M-01
5 pcs.
1.07 €
25 pcs.
0.95 €
125 pcs.
0.86 €
500 pcs.
0.79 €
1000 pcs.
0.73 €
5.35 € *
Available: 411 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.0047 mH
1.5 A
0.09 Ω
Power choke, SMD, 15 µH, 1.1 A, PISG-150M-01
Order No.:
 74D4634
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-150M-01
5 pcs.
1.07 €
25 pcs.
0.95 €
125 pcs.
0.86 €
500 pcs.
0.79 €
1000 pcs.
0.73 €
5.35 € *
Available: 1,085 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.015 mH
1.1 A
0.23 Ω
Power choke, SMD, 10 µH, 1.2 A, PISG-100M-01
Order No.:
 74D4632
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-100M-01
5 pcs.
1.07 €
25 pcs.
0.95 €
125 pcs.
0.86 €
500 pcs.
0.79 €
1000 pcs.
0.73 €
5.35 € *
Available: 557 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.01 mH
1.2 A
0.16 Ω
Power choke, SMD, 47 µH, 500 mA, PISG-470M-01
Order No.:
 74D4640
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-470M-01
5 pcs.
1.07 €
25 pcs.
0.95 €
125 pcs.
0.86 €
500 pcs.
0.79 €
1000 pcs.
0.73 €
5.35 € *
Available: 180 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.047 mH
0.5 A
0.64 Ω
Power choke, SMD, 1 µH, 2.9 A, PISG-1R0M-01
Order No.:
 74D4620
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-1R0M-01
5 pcs.
1.06 €
25 pcs.
0.94 €
125 pcs.
0.86 €
500 pcs.
0.77 €
1000 pcs.
0.71 €
5.30 € *
Available: 102 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.001 mH
2.9 A
0.05 Ω
Power choke, SMD, 2.2 µH, 2.4 A, PISG-2R2M-01
Order No.:
 74D4624
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-2R2M-01
5 pcs.
1.02 €
25 pcs.
0.92 €
125 pcs.
0.83 €
500 pcs.
0.75 €
1000 pcs.
0.69 €
5.12 € *
Available: 383 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.0022 mH
2.4 A
0.07 Ω
Power choke, SMD, 330 µH, 160 mA, PISG-331M-01
Order No.:
 74D4650
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-331M-01
100 pcs.
0.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.33 mH
0.16 A
3.8 Ω
Power choke, SMD, 22 µH, 800 mA, PISG-220M-01
Order No.:
 74D4636
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-220M-01
100 pcs.
0.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.022 mH
0.8 A
0.37 Ω
Power choke, SMD, 68 µH, 400 mA, PISG-680M-01
Order No.:
 74D4642
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-680M-01
750 pcs.
0.76 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.068 mH
0.4 A
0.86 Ω
Power choke, SMD, 470 µH, 150 mA, PISG-471M-01
Order No.:
 74D4652
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-471M-01
100 pcs.
0.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.47 mH
0.15 A
5.06 Ω
Power choke, SMD, 3.3 µH, 2 A, PISG-3R3M-01
Order No.:
 74D4626
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-3R3M-01
100 pcs.
0.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.0033 mH
2 A
0.08 Ω
Power choke, SMD, 220 µH, 200 mA, PISG-221M-01
Order No.:
 74D4648
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-221M-01
5 pcs.
1.02 €
25 pcs.
0.92 €
125 pcs.
0.83 €
500 pcs.
0.75 €
1000 pcs.
0.69 €
5.12 € *
Available: 870 pcs.
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.22 mH
0.2 A
3.11 Ω
Power choke, SMD, 33 µH, 600 mA, PISG-330M-01
Order No.:
 74D4638
Manufacturer:
 Fastron
Manufacturer SKU
 PISG-330M-01
100 pcs.
0.83 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
4.45 mm
6.6 mm
±20 %
2.92 mm
0.033 mH
0.6 A
0.51 Ω
