PISG-4R7M-01 | Fastron

Power choke, SMD, 4.7 µH, 1.5 A, PISG-4R7M-01

Order No.: 74D4628
EAN: 4099889011913
MPN:
PISG-4R7M-01
Series: PISG

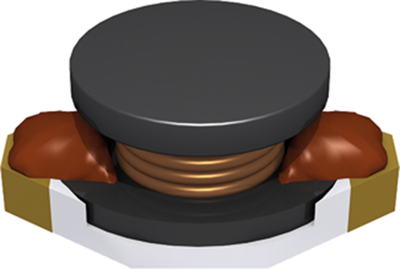

PISG-4R7M-01 Fastron Fixed Inductors Image 1
PISG-4R7M-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
2.7370 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
10 pcs.
1.7136 €
50 pcs.
1.4994 €
750 pcs.
1.2019 €
1500 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD Power inductor, PISG-4R7M-01, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Filter Property Value
Measuring frequency 100 kHz
Design SMD
Length 6.6 mm
DC current 1.5 A
Width 4.45 mm
Inductance 4.7 µH
Tolerance ±20 %
Saturation current 1.5 A
DC resistance 0.09 Ω
Version power choke
Height 2.92 mm
Logistics
Property Value
Original Packaging Reel with 750 pieces
Country of origin MY
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
