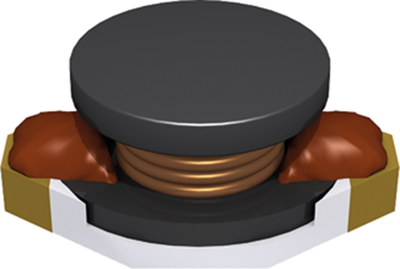

Power choke, SMD, 330 µH, 160 mA, PISG-331M-01
Unit Price (€ / pc.)
1.0234 € *
Available in 4 Days: 700 pcs. - if ordered today
Power inductor, PISG-331M-01, FASTRON
The PISG-331M-01 is a SMT power inductor which stores energy while also filtering EMI currents with a low-loss inductance for voltage conversion applications.
Features
- High rated current
- High reliability
Applications
- Power supplies
- Coupling and Decoupling
- LCD TV
- Norebooks
- DC/DC converters
- Network switching systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 6.6 mm | |
| DC current | 160 mA | |
| Height | 2.92 mm | |
| Saturation current | 180 mA | |
| Inductance | 330 µH | |
| Measuring frequency | 100 kHz | |
| Width | 4.45 mm | |
| Design | SMD | |
| DC resistance | 3.8 Ω | |
| Version | power choke | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 100 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
