PISG-1R0M-01 | Fastron

Power choke, SMD, 1 µH, 2.9 A, PISG-1R0M-01

Order No.: 74D4620
EAN: 4099889011883
MPN:
PISG-1R0M-01
Series: PISG

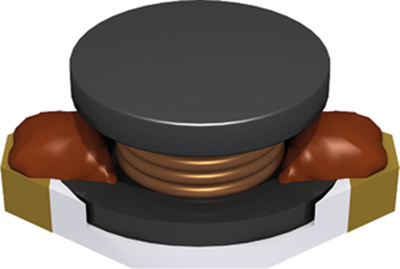

PISG-1R0M-01 Fastron Fixed Inductors Image 1
PISG-1R0M-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.6541 € *
Available in 4 Days: 261 pcs. - if ordered today
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
10 pcs.
1.1900 €
100 pcs.
0.9996 €
500 pcs.
0.8925 €
1000 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD Power inductor, PISG-1R0M-01, Fastron

Power Inductors (with tube/also shielded)-Surface Mount Type

Features

  • Power inductors can withstand a wide temperature range
  • The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
  • They have a high reliability and can be assembled by surface mount technology
  • Their DC resistance keeps power losses to a minimum
  • They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems

Applications

  • These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
Filter Property Value
Inductance 1 µH
DC current 2.9 A
DC resistance 0.05 Ω
Design SMD
Version power choke
Width 4.45 mm
Height 2.92 mm
Saturation current 2.9 A
Tolerance ±20 %
Measuring frequency 100 kHz
Length 6.6 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 100 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
