MESC-5R0M-01 | Fastron

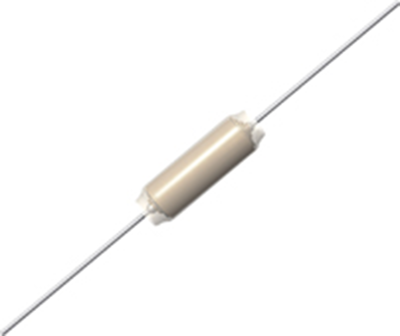

Suppressor choke, axial, 5 µH, 4 A, MESC-5R0M-01
Unit Price (€ / pc.)
1.3328 € *
Available in 4 Days: 717 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2257 €
100 pcs.
1.1662 €
500 pcs.
1.0948 €
1000 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, MESC-5R0M-01, FASTRON
The MESC-5R0M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.
Features
- High rated current
- Low DC resistance
Applications
- RF blocking, filtering and decoupling
- Entertainment devices
- Interference suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 5 µH | |
| Length | 24 mm | |
| Saturation current | 4 A | |
| Design | axial | |
| DC resistance | 41 mΩ | |
| Tolerance | ±20 % | |
| DC current | 4 A | |
| Measuring frequency | 1 MHz | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
