3RCC-7R0M-00 | Fastron

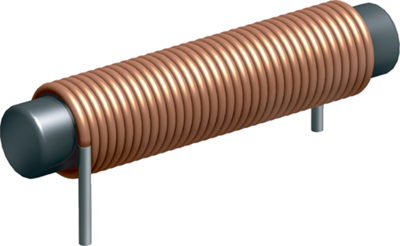

Rod core choke, horizontal, 7 µH, 1.9 A, 3RCC-7R0M-00
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8449 € *
Available in 4 Days: 700 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7854 €
100 pcs.
0.7378 €
500 pcs.
0.7021 €
1000 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Rod core chokes, type Fastron .RCC.
For applications in the automotive industry, interference suppression for electrical motors, with ferrite core
Type 3RCC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | suppressor choke | |
| Inductance | 7 µH | |
| DC current | 1.9 A | |
| Tolerance | ±20 % | |
| DC resistance | 16 mΩ | |
| Measuring frequency | 1 MHz | |
| Design | horizontal | |

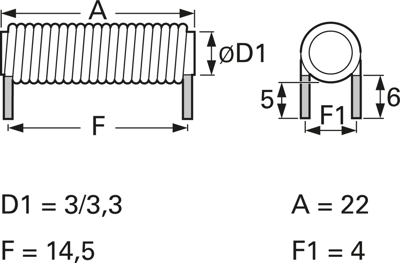

| Length | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
