1008F-4R7K-01 | Fastron
RF choke, SMD 1008, 4.7 µH, 400 mA, 1008F-4R7K-01
Unit Price (€ / pc.)
0.3927 € *
Available in 4 Days: 1,306 pcs. - if ordered today

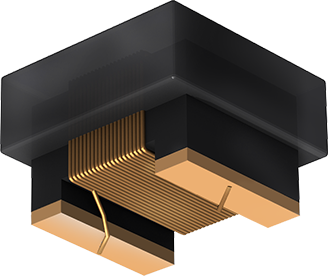

RF inductor, 1008F-4R7K-01, Fastron
This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.
Applications
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 1.68 Ω | |
| Measuring frequency | 7.9 MHz | |
| Width | 2.8 mm | |
| Inductance | 4.7 µH | |
| Length | 2.9 mm | |
| Quality Q | Q 25 | |
| Tolerance | ±10 % | |
| DC current | 400 mA | |
| Height | 2.1 mm | |
| Version | RF choke | |
| Design | SMD 1008 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 100 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
